A selection of structural engineering projects we have delivered for homeowners, architects and contractors across Guildford, Surrey, London and the South East.

AllResidential ExtensionLoft ConversionVictorian RenovationCommercialWall RemovalNew Build

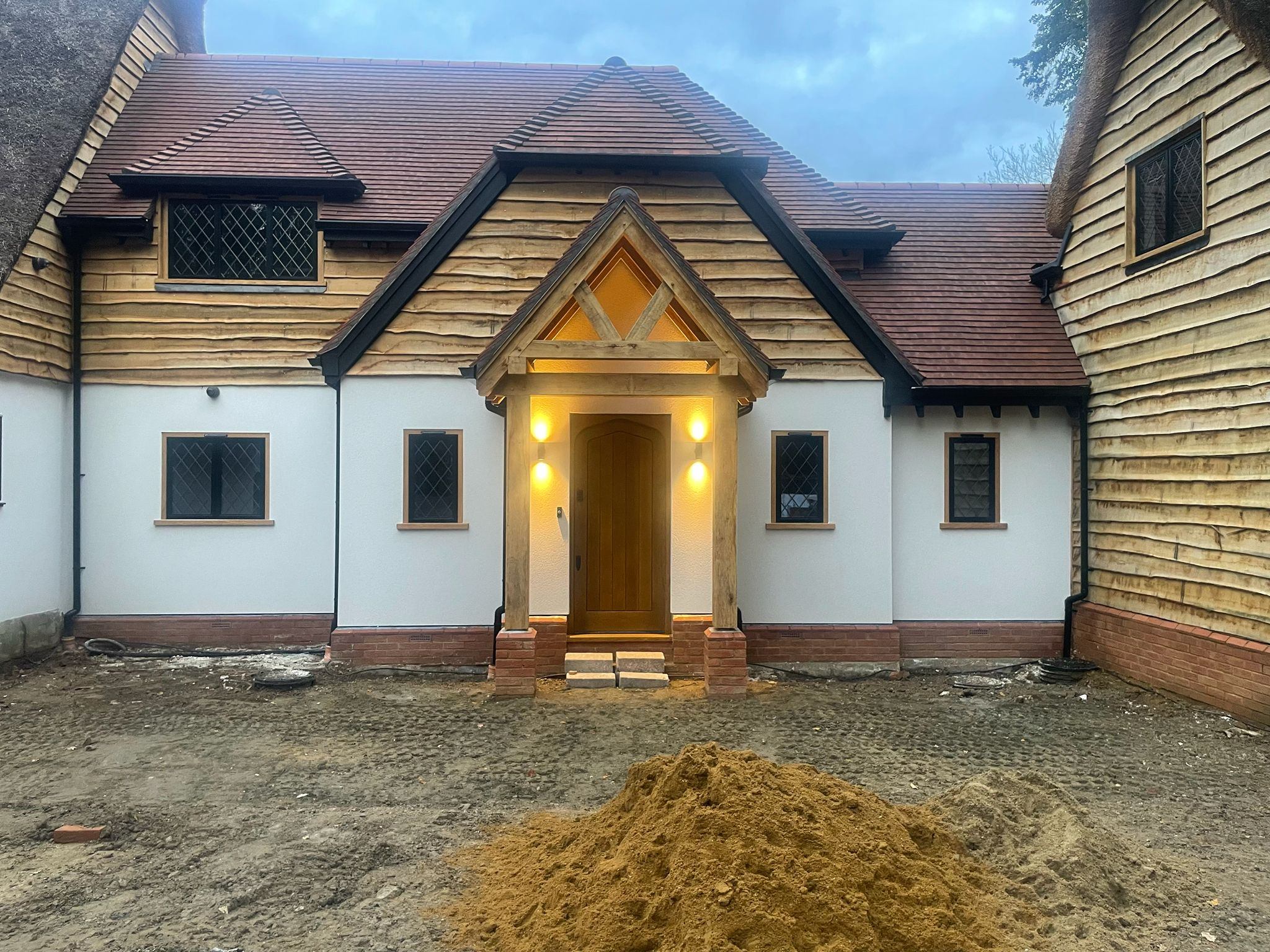

Oak-framed entrance porch to residential extension in West Byfleet, SurreyResidential Extension

West Byfleet, Surrey

Residential Extension & Open Plan Remodel

Large-scale residential extension to a detached property in West Byfleet, creating a generous open-plan kitchen, dining and living space with vaulted ceiling and full-width glazed doors to the garden. The works also included a new oak-framed entrance porch to the front elevation. Structural engineering covered the design of steel beams to carry loads from the existing structure, new foundations, and the oak frame porch design.

Scope of Works

  • Structural calculations for large single-storey extension
  • Steel beam design for open-plan layout
  • Vaulted roof structure design
  • Oak-framed entrance porch structural design
  • Foundation design
  • Structural drawings for Building Control submission
Converted loft space with Velux windows and new roof structureLoft Conversion

Surrey

Loft Conversion — Hip to Gable

Hip-to-gable loft conversion to a semi-detached property in Surrey, creating a full-width bedroom suite. Works involved restructuring the existing roof, designing a new steel ridge beam and purlins, and producing a structural frame design for a rear dormer. Party Wall matters were managed with the adjoining neighbour throughout.

Scope of Works

  • Roof structure redesign and calculations
  • Steel ridge beam and purlin design
  • Dormer structural frame design
  • Party Wall structural assessment
  • Full structural drawings package
Victorian terraced houses in Farncombe, SurreyVictorian Renovation

Farncombe, Surrey

Victorian Mid-Terrace Full Renovation

A complex structural project on a mid-terrace Victorian cottage in Farncombe that grew significantly in scope as works progressed. The project included piling to address poor ground conditions, full roof restructuring, and Party Wall matters with two adjoining neighbours. Chris coordinated with multiple specialist contractors over a two-year programme, providing full structural oversight from start to finish.

Scope of Works

  • Piling design and specification
  • Roof structure redesign
  • Party Wall structural advice and liaison with two neighbours
  • Coordination with scaffolding designer and roofing contractor
  • Building Control approval
  • Full project oversight from start to finish
Industrial commercial building with precast portal frame structureCommercial

London

Precast Portal Frame Industrial Shed

Structural engineering advice on the replacement of wall cladding to an existing precast portal frame industrial building in London. The project required detailed research into appropriate fixing methods for the new cladding system to the existing precast frame — a technically demanding brief given the need to avoid re-fixing into the original precast elements in a way that could compromise structural integrity.

Scope of Works

  • Structural assessment of existing precast frame
  • Research into cladding fixing solutions
  • Design of replacement cladding fixing system
  • Technical specification for contractor
  • Client and architect liaison
Open plan living space created by chimney breast and wall removalWall Removal

Surrey

Chimney Breast Removal & Steel Beam

Removal of a load-bearing chimney breast through ground and first floor of a Victorian terraced house in Surrey, opening up the ground floor living space. The project required a carefully designed temporary propping scheme during demolition and a bespoke steel beam to carry loads from two floors and the roof structure above.

Scope of Works

  • Structural assessment of existing chimney breast and walls
  • Temporary propping scheme design
  • Steel beam sizing and specification
  • Padstone and bearing design
  • Structural calculations for Building Control
New build residential house under construction with timber frameNew Build

Surrey

Detached New Build — Timber Frame

Full structural engineering service for a detached two-storey timber frame new build on a sloping site in Surrey. The project included foundation design on variable ground conditions identified during site investigation, timber frame structural design, and close coordination with the architect and timber frame manufacturer from planning through to completion.

Scope of Works

  • Foundation design on variable ground conditions
  • Timber frame structural design
  • Structural calculations package
  • Coordination with timber frame manufacturer
  • Building Control drawings and calculations
  • Site inspections at key stages
